Maximizing Efficiency: The Ultimate Guide to Coalescing Filter Element

In industrial environments where critical equipment and components are in constant operation, maintaining their longevity and optimal performance is essential. The presence of contaminants, such as liquid aerosols and particulates, circulating in compressed air and gases, pose a significant threat to these sensitive systems. This is where the power of coalescing filters comes into play.

If used effectively, this element can effectively eliminate a wide range of liquid contaminants, including water and oil aerosols. This article will provide a comprehensive introduction to coalescing filters and their important functions.

What is a Coalescing Filter?

A coalescing filter element is a component commonly referred to as a “coalescing filter,” although it does not function as a traditional filter. Unlike filter elements that physically trap and remove particles, the primary purpose of a coalescing filter element is to facilitate the process of coalescence.

In industrial settings, coalescing filters are used to remove oil, water, and particles from compressed air systems. The design of the coalescing filter element typically involves fine fiber meshes that intercept aerosol particles, allowing smaller particles to merge and form larger droplets. These larger droplets are then separated from the gas stream as they become too heavy to remain buoyant.

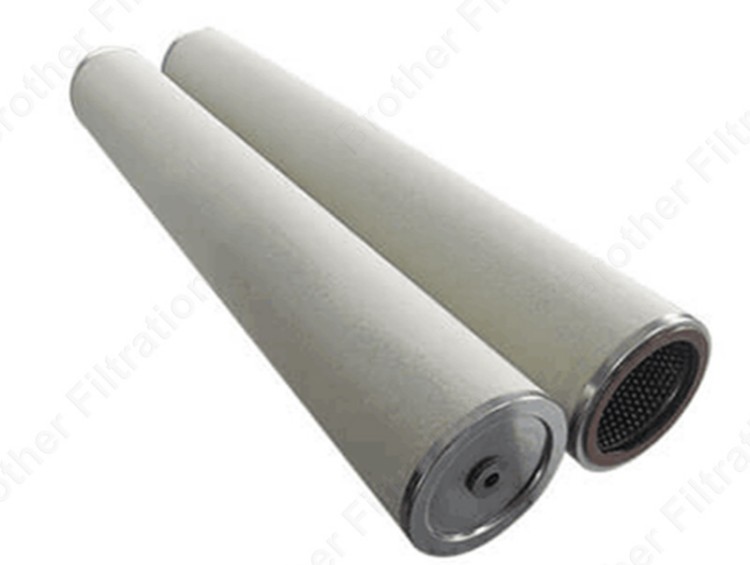

Three Types of Coalescing Filter Cartridge

Brother Filtration Coalescer Cartridge series is competitive and useful. This series can fulfill all kinds of needs in oil, water and other fluids, removing particles in liquids and liquids from gas, and separating particles from liquids and gas.

Liquid–Liquid:

CLL 1.0 coalescer cartridges find application across diverse liquid/liquid separation processes in industries such as chemicals, flavor and fragrance, and biotechnology. Featuring a tapered layer pore construction, this cartridge ensures efficient performance.

Upon entry into the cartridge from the inside, the emulsion undergoes a preliminary filtration step through a pre-filter, effectively removing coarse particles and thereby prolonging the cartridge’s service life. Subsequently, the liquid encounters a fine media layer, initiating the coalescence process to create larger droplets. a coarse media layer maximizes the coalesced droplet size, ultimately completing the coalescing process, and making the fluid exit the outer layer of the cartridge.

Liquid–Gas:

The CLG1.0 series element efficiently coalesces fine liquid particles (water, oil, hydrocarbon compounds) from natural gas. Its inside-to-outside flow pattern enhances performance. The C1.0 filter cartridge excels at filtering solid particles and liquid mists, reducing pressure differentials at high flow rates.

Superfine fibers inside the coalescer capture oil, water, and fluid particles. Microfiber guides airflow sinusoidally, causing collision between solid and mist particles. Surface tension facilitates coalescence, leading to larger particles that gravity pulls into the collecting reservoir. This design ensures effective separation of contaminants from the gas stream.

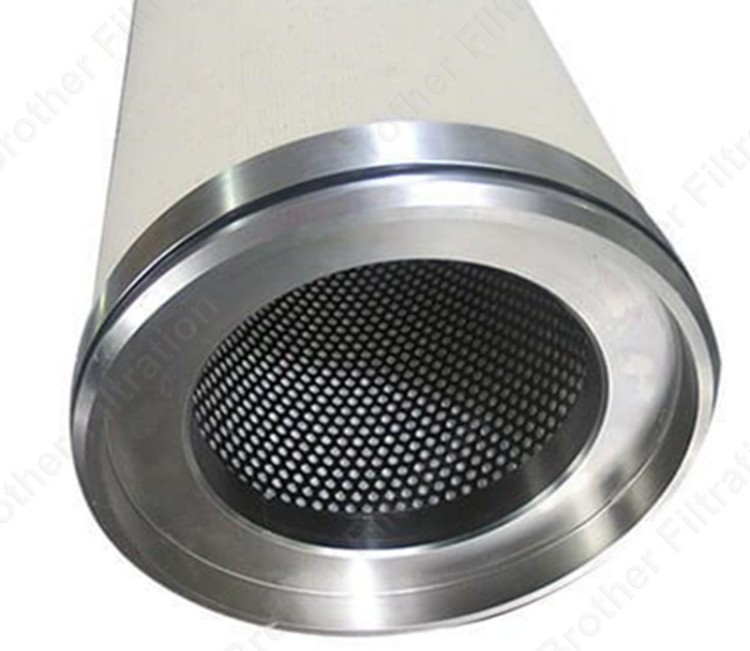

The CLG 2.0 Coalescer Filter Cartridge, designed with an inside-to-outside flow direction, effectively eliminates liquid and solid contaminants. It utilizes filter media like glass fiber, polyester, or polypropylene to meet diverse filtration needs. Large cartridges, customizable based on customer requirements, offer larger filtration surface area, improving various capabilities such as particle removal ratio and dirt-holding capacity.

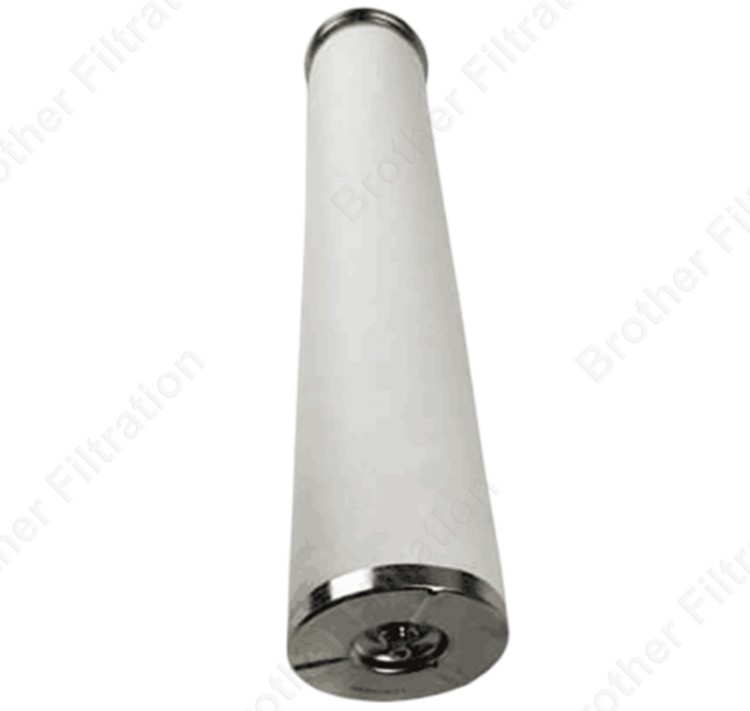

How does Coalescing Filter cartridge work?

A Coalescing Filter Cartridge operates based on the principle of coalescence, aiming to remove fine liquid droplets or aerosols from gas or liquid streams. Here’s a breakdown of how it works:

Step 1: Interception

As the contaminated gas or liquid flows through the filter cartridge, the coalescing filter element’s fibers intercept small droplets or particles present in the stream.

Step 2: Brownian Diffusion

Smaller particles that manage to pass through the interception phase are subjected to Brownian motion. This causes them to collide with the filter fibers, further slowing them down.

Step 3: Coalescence

The intercepted and diffused particles then coalesce or combine to form larger droplets. These larger droplets are easier to capture and remove from the gas or liquid stream.

Step 4: Filtration and Separation: The coalesced droplets are now large enough to be effectively filtered out by the media in the coalescing filter cartridge. The separated liquid is collected and drained away, leaving the purified gas or liquid to continue its intended process.

In essence, the coalescing filter cartridge ensures that even the smallest liquid droplets in a gas or liquid stream are captured, coalesced into larger droplets, and then efficiently removed, contributing to the overall cleanliness and efficiency of the system.

Application of Coalescing Filter element

Coalescing filter elements find diverse applications across various industries where the separation of liquid contaminants from gas or liquid streams is essential. Here are some common applications of coalescing filter elements:

Compressed Air Systems

Coalescing filter elements are widely used in compressed air systems to remove oil droplets and fine particles, ensuring the quality of the compressed air. They help prevent oil contamination that can potentially affect the performance and reliability of pneumatic equipment.

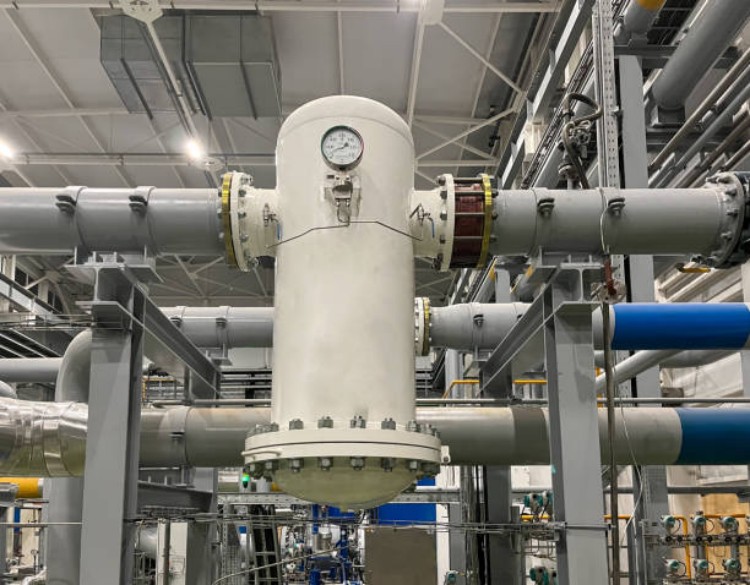

Gas and Liquid Filtration

Coalescing filter elements are used in gas and liquid filtration processes to separate and remove liquid or gas impurities such as water, oil, sulfur, carbon dioxide, and methane. These impurities can be detrimental to the quality and efficiency of the process. Coalescing filters facilitate the coalescence process, allowing for the easy removal of these impurities.

Petrochemical Refining

Coalescing filter elements find applications in petrochemical refining processes, mainly for fuel filtering and oil purification. They help remove contaminants and particulates, ensuring the purity and quality of the refined products.

Food and Beverage Industry

In the food and beverage industry, coalescing filters are used for the separation of oils and fats from liquid products like cooking oil, beverages, and food processing fluids. They help maintain the desired quality and clarity of the final products.

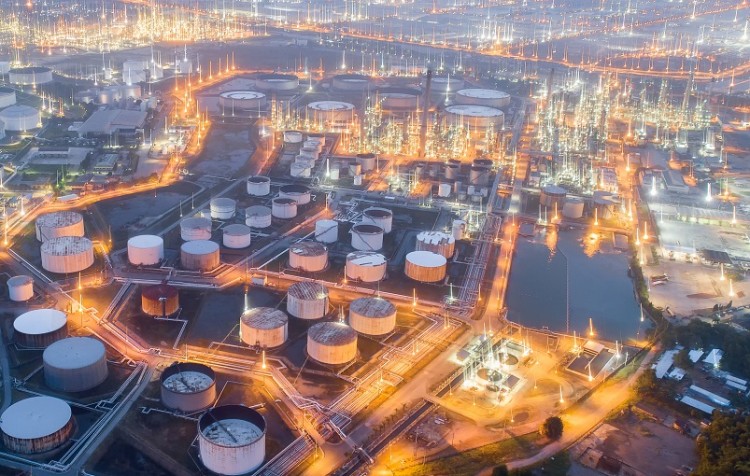

Oil and Gas Industry

Coalescing Filter elements are instrumental for separating liquid droplets from natural gas streams. Deployed in critical processes, these filters safeguard downstream equipment, ensuring the integrity and quality of natural gas for various industrial applications.

The Importance of Coalescing Filtration in Industrial Processes

Coalescing filtration is used to separate liquids from gases, remove solid particles and contaminants, and ensure the smooth operation of industrial equipment. One key importance of coalescing filtration is the removal of liquid droplets from gases.

In industries such as oil and gas, power generation, and chemical manufacturing, gases often carry moisture and other liquid contaminants. Coalescing filters effectively trap these liquid droplets and prevent them from reaching downstream equipment, thereby protecting sensitive components and ensuring their optimal performance.

Moreover, By removing solid particles and contaminants from liquids and gases, coalescing filters help prevent clogging, corrosion, and erosion of equipment, reducing the risk of breakdowns and expensive repairs. This leads to increased efficiency, reduced downtime, and significant cost savings for industrial processes.

Conclusion

Coalescing filters are used in a variety of industries. Implementing these filters maintains the quality of liquids and gases. Coalescing filters also benefit industrial manufacturers by helping them extend the service life of their system machinery and reduce operating costs.

As your reliable filtration partner, Brother Filtration can provide professional filtration solutions based on your site. For additional details or to request a quote, feel free to reach out to us online today or email us at info@brotherfiltration.com to connect with a knowledgeable area engineer.
